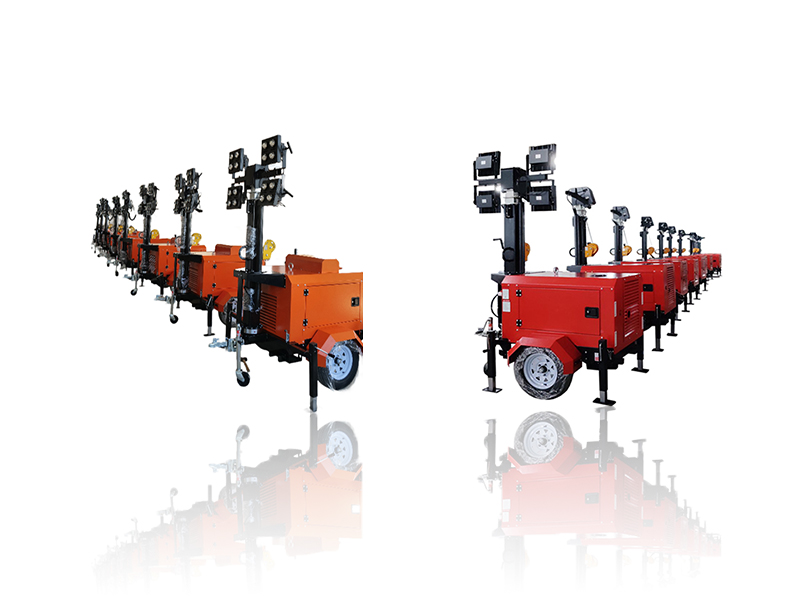

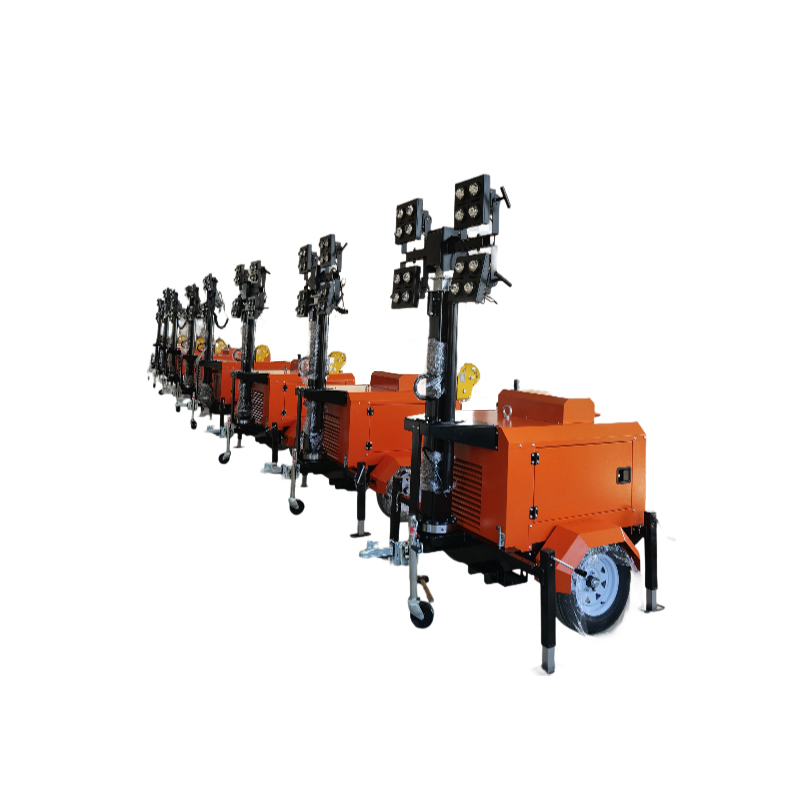

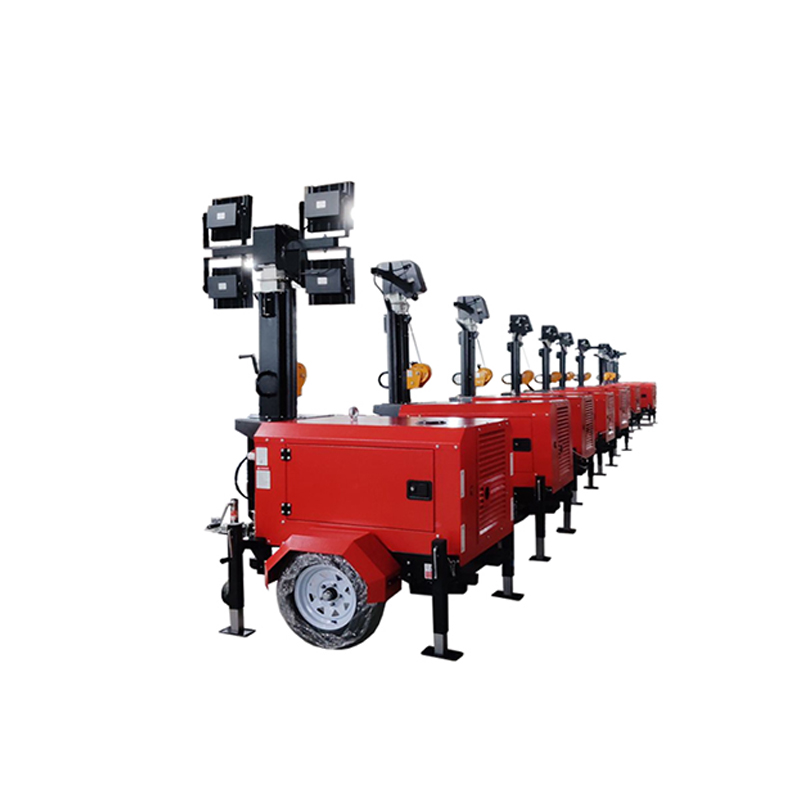

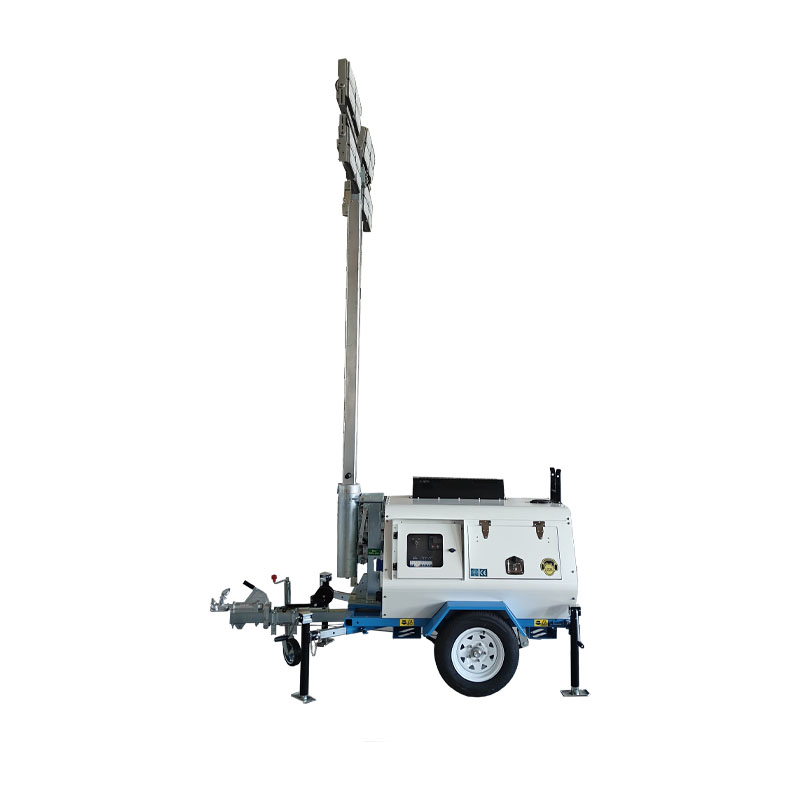

Portable light tower with built-in generator for powerful lighting and reliable power in remote or job site applications.
Model :
ON1200ESpeed :
1500RPMRated Net Output（PRP) :
50HZ/1500RPMCoolant :
WaterNumber of cylinders :
4Light Coverage m2 :
4x350WLamps :
LEDMast :
Verlical HydraulicFeatures :
Gull wing canopy
Product Features：
| Lighting Tower Technical Data | |
| Power Package Rated Power | 15kw |
| Number & Power of Lamp | 4x350W |
| Rated Frequency/ Speed | 50HZ/1500RPM |
| Rated Voltage | AC 230V |
| Noise | 65dB(A) @7M |
| Mast-Maximum Height | 7.2M |
| Mast Lifting & Extension |
Manual Operation |
| Fuel level gauge |
Electronic |
| Tower leg type |
Manual |
| Trailer Load bearing |
750KG |
| Trailer type |
Off road type |
| AUX. Power output |
16A/3P Socket |
| Rotation angle range of light |
355° |
| Wind resistance grade |
65km/h |
| Recommended use environment |
Level ground |
| Lamp | |
| NumberxPower | 4x350W |
| Lamp type | LED |
| Protection Glass | IP67 |
| Luminous Efficiency |
150Lm/W |
| Color Temperature |
5000 K |
| Voltage |
AC 230V |
| Lamp sevice life |
50000hrs |
| Control System | |
| Controller Model | smartgen 1790N |
| Dimension and Weight | |
| Max Overall Dimension (LxWxH) | 2990*2310*7200 mm |
| Container loading Dimension (LxWxH) |
1480*1100*2450 mm |
| Tank Capacity / Running Hr. |
100 L/81 hrs |
| Weight |
1015KG |
| The loading capacity(40'HC) |
15 Sets |
| Engine Specifications | |
| Engine Model | 4TNV88-GGE |
| Manufacturer | ONEW |
| Emission |
/ |
| Number of Cylinders |
4 |
| Cycle |
4 Stroke |
| Aspiration |
Naturally |
| Prime Power /Speed (Gross) |
18KW/1500 |
| Lube-oil Capability |
7.4L |
| Fuel consumption |
<318 g/kwh |
| Starter motor/ Alternator |
12V 1.0kW |
| Alternator Specifications | |
| Alternator Model | ON-15 |
| Manufacturer | ONEW |
| Rated Output Power | 15KW |
| Alternator Type | Brushless |
| Rated Voltage |
AC 230V |
| Rated Speed |
1500 RPM |
| IP Protection |
IP23 |
| Insulation Grade |
H |
| OPTIONS | |
| Jacket water heater | Manual pump |
| Lub-oil heater | Smartgen controller |
| ABB/Schneider MCB | Sockets |
| Battery charger | Larger fuel tank |
Construction & Roadwork – Night shifts, remote sites
Mining & Oilfields – Hazardous area lighting
Emergency Lighting – Disaster recovery, power outages
Events & Security – Outdoor festivals, parking lots
All-in-One Solution – No separate generator needed
Fuel & Energy Efficient – Save up to 40% on diesel costs (hybrid models)
Global Certifications – CE, ISO, OSHA-compliant
24/7 Support – Spare parts & technical assistance
Space-saving: Combined power+lighting reduces site equipment by 40%
Fuel-efficient: Smart throttle saves 15-20% vs conventional systems
Quick deployment: Fully operational in <5 minutes
For project-specific configurations (voltage, mast height, lighting patterns), please consult our engineering team.
FUZHOU ONEW CERTIFICATE
Established: 2015 (Fuzhou, China)
Focus: Third-party certification for electromechanical products
Generators & power systems
Industrial lighting equipment
Marine/offshore components
Light tower Opitonal Engine Brands
For customers requiring diesel-powered light towers, we offer a selection of high-performance engines from globally recognized manufacturers.
